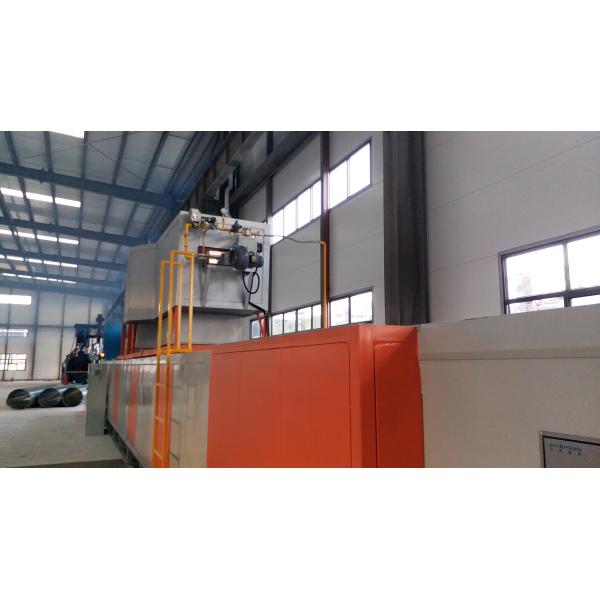

Heat Treatment Powder Coating Baking Oven Low Noise Running ±5℃ Precision

Name: Heat Treatment Powder Coating Baking Oven Low Noise Running 5 Precision
Brand: SHISHENG
Price: 1 USD

Brand Name : SHISHENG

Certification : ISO9001 CE

Place of Origin : Changzhou

MOQ : 1

Price : 1 Set

Payment Terms : L/C, T/T

Supply Ability : 6 Sets per Month

Delivery Time : Two months after receipt of advance payment

Packaging Details : 40 HQ

Model Number : SL1400

Color : Silvery

Inside dimension : 14m*1.2m*0.3m

Heating capacity : 400000kcal/h

Max curing temperature : 400℃

Temperature uniformity : ±5℃

Avg.heating up time : 40min

Max load capacity/mesh-belt : 220kg/㎡

Max output : 9000kg/h

Contact Now

Heat Treatment Powder Coating Baking Oven Low Noise Running ±5℃ Precision

Unlimited sizes available in Standard and High Efficiency Class
Top or Rear Burner System
Aluminized Interior and Exterior Steel
Modulating or On/Off Burner Set Up
Full Length Side Wall Ducting on all models
Digital Temperature Controller with Auto Tune Function
High Limit Controller with Digital Readout

Product Description

1. Technological process:

Leveling

Drying(Pre-heating)

Curing

Cooling

unloadin

2. Main structure:

Mainly structured of Loading and uncloading sections , HL Cooling System, Convey Unit, Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automaticly controlled with the speed of mesh-blet regulated, it can fully satisfy all curing processes.

3. Main parameter : (Based on M10)

Outside dimension	24×2.2×4.5 (LWH)	m
Inside dimension	14×1.2×0.3 (LWH)	m
Max curing temperature	400	℃
Temperature uniformity control	±5	℃
Max load capacity/mesh-belt	220	kg/m²
Avg.gas consumption	25	m³/h
Max output	9000	kg/h
Belt convey speed	0.23~0.62	m/min

Heat Treatment Powder Coating Baking Oven Low Noise Running ±5℃ Precision
